The newest device

Drone Suppressor

Main characteristics

SKU	2121
Vendor	Intercept
Category	Drone' interception systems
Standart	GPS/GLONASS - WiFi/900/2400/5000
Frequency	430 MHz to 6 GHz
System output	1600 Watts (Total power of jammers)
Power source	110 - 220 VAC
Area of coverage (m²)	3000000
Active range (m)	5000
Antenna	Combined panel, directional or omni directional
Connectors	10x N type, 2x RJ45
Weight	50 kg
Shipment	Worldwide

Review

Jamming

Sensors

Antenna

Applications

Video

Download

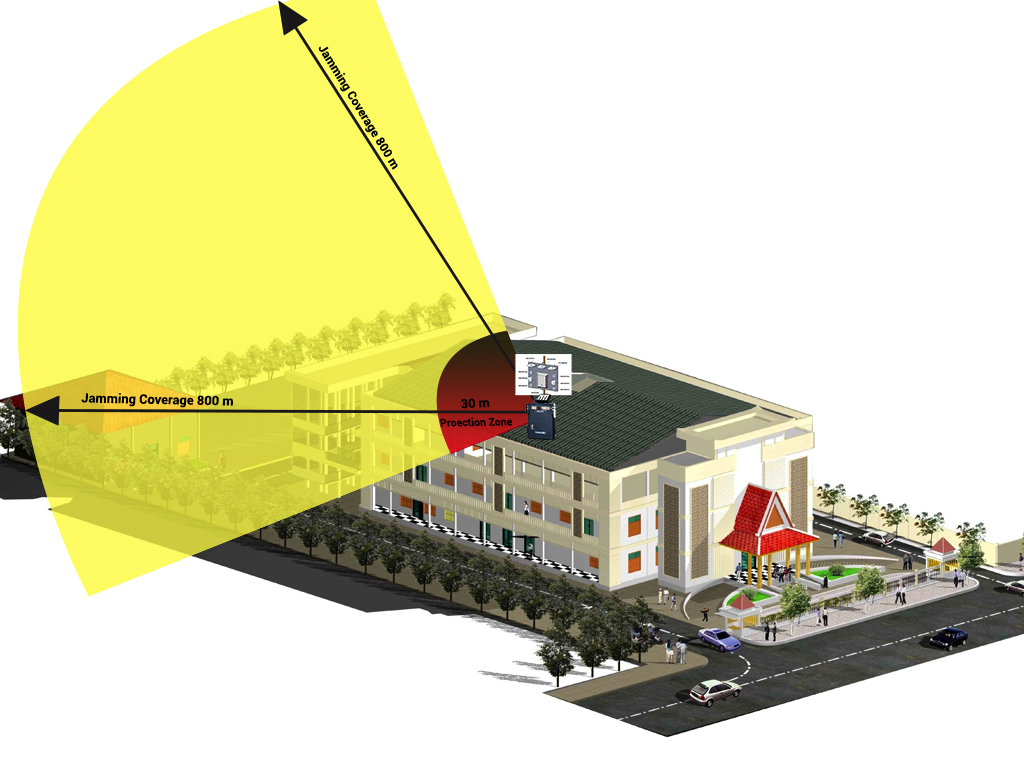

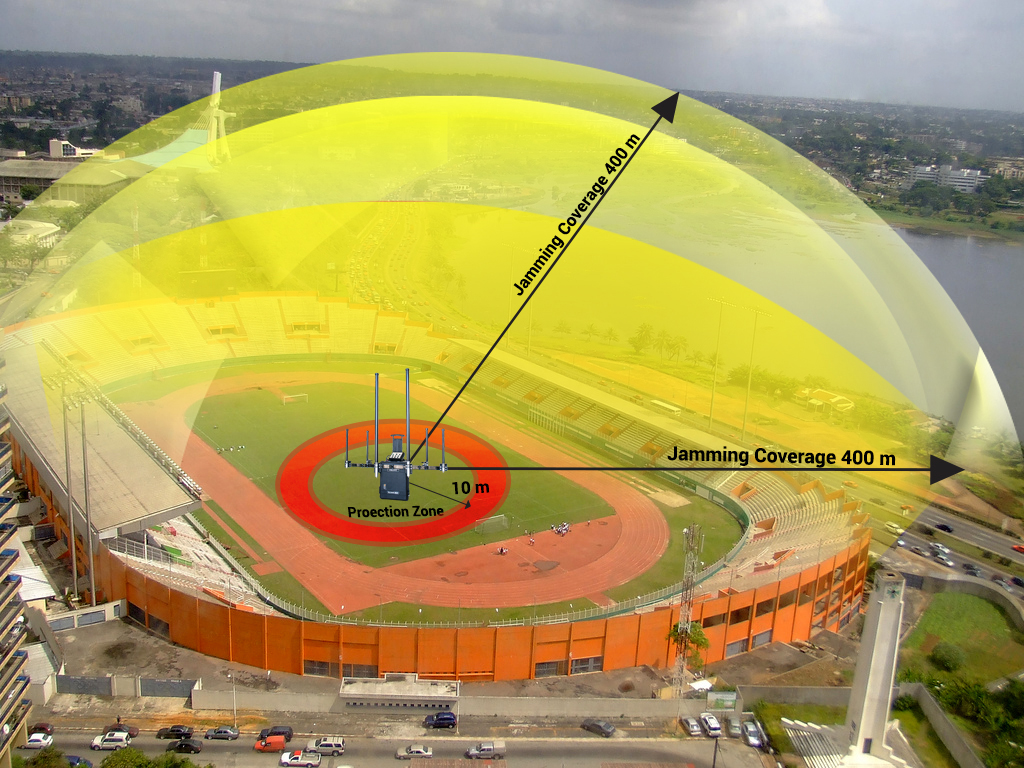

An economical and effective solution for intercepting of civilian UAV. Does not contain expensive radars.

The drones interception system consists of powerful jammers, radio frequency and optical sensors and can be combined into groups of several systems to protect large areas. The system is controlled by a special software package for UAV monitoring

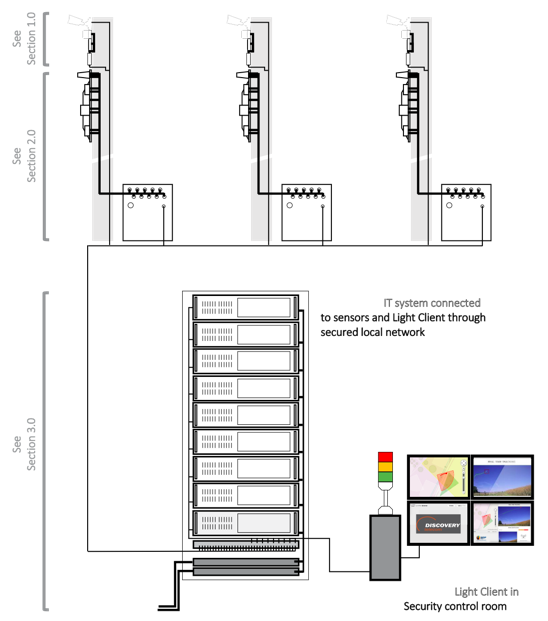

Recommended mounting for a group of one optical sensor and one Radio-frequency sensor with antennas and cables. DroneWatch sensors are PoE ready, please ensure you either have a direct connection with PoE capable switches (up to 30 watts per sensor) or PoE power injectors installed between switches and sensors.

File Title	Release Date	File Type	Size (mb)	Action
RF sensors based UAV Suppression System	07-24-2017	Documentation (pdf)	2.95 MB	download
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

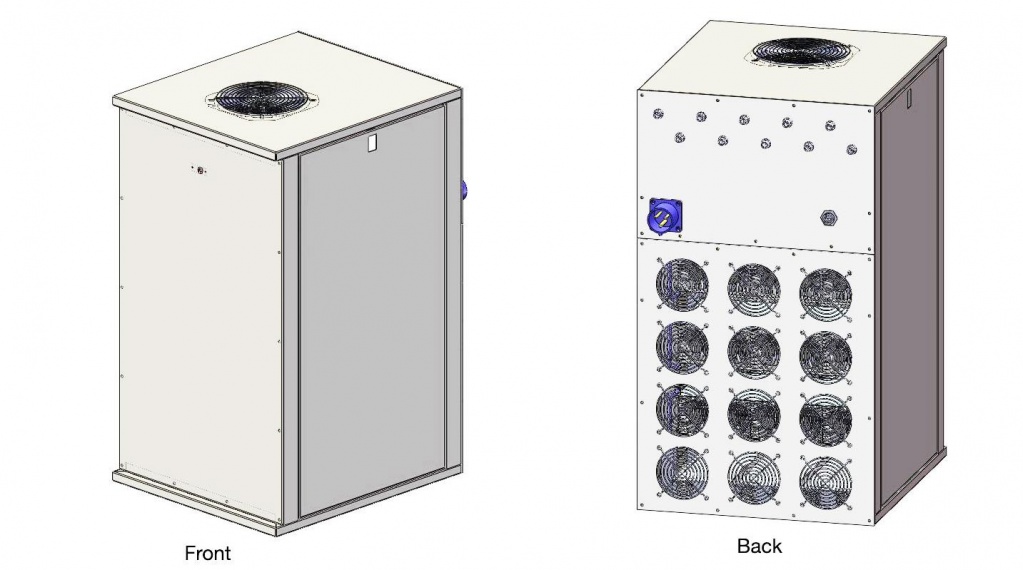

JAMMING FREQUENCY BANDS / POWER / APPLICATIONS

432-436 MHz 125W Remote control

900-1170 MHZ 200W Remote control

1171-1380 MHz 200W GPS (L2, L3, L4, L5), GLONASS (L2, L3), Galileo (E5, E6)

1570-1620 MHz 150W GPS (L1), GLONASS (L1), Galileo (E1)

2400-2500 MHz 2x175W Wifi / remote control

5000-5400 MHz 2X50W Remote control

5400-5875 MHz 2X50W Wifi / remote control

TOTAL EMITTED POWER 1225W

RANGE Up to 1Km

BOX OPERATING CONDITIONS -10°C to +50°C

MATERIAL Metal case

SIZE 550 x 700 x 950mm

WEIGHT 70kg

SYSTEM INPUT VOLTAGE 110 to 220VAC

INPUT POWER 4kW

SOFTWARE CONTROL Software remote control from the DroneWatch software interface with adjustable power (0%, 25%, 50%, 75%, 100%) for each frequency band, temperature control for each frequency band with alerts for high temperatures and VSWR alarms to detect antenna malfunction.

CONNECTORS 10x type N jacks, 1x RJ45 network socket DW-JM-01 is designed to work with DW-CA cables and DW-JA-01 antennas which are highly recommended to ensure optimal operations.

File Title	Release Date	File Type	Size (mb)	Action
RF sensors based UAV Suppression System	07-24-2017	Documentation (pdf)	2.95 MB	download
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

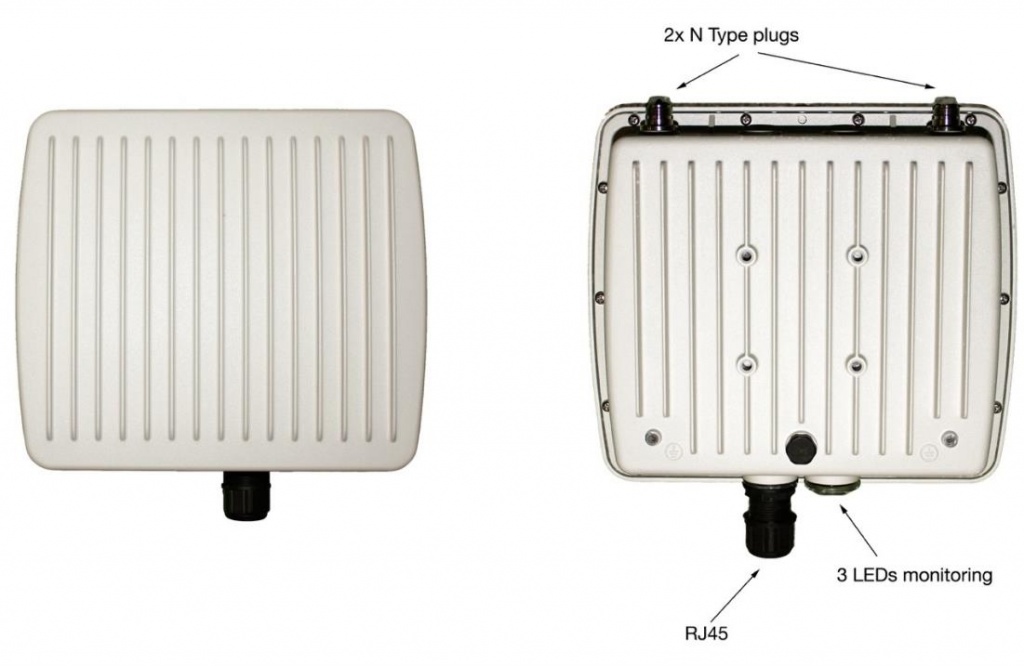

RF Sensors

Radio frequency detector enables real time detection of signal coming from any commercial UAVs.

RF sensor combines unique software and hardware technologies to ensure DroneWatch solutions’ accuracy, long range and the highest level of reliability in any conditions. Our radio frequency sensors are the backbone of DroneWatch’s long range detection solution as they provide unique data on transmission protocols and advanced signal analysis to DroneWatch systems.

RF Detection:

Bands : 2.4 – 2.5GHz / 5.725 – 5.875GHz

Type : Radio frequency + Wifi

RANGE : Up to 500m

FOV : 90°

Box:

Material : Die cast alloy (AI-Si-Mg) with SurTec surface treatment

(high corrosive protection used in aerospace industry)

Color : White

Protection : IP67

Size : 250x140x37mm

System:

Operating Conditions : -10°C to 50°C

Outputs : 2x N type jacks / 1x RJ45 / 3 LEDs monitoring

Power : PoE (max 25.5W)

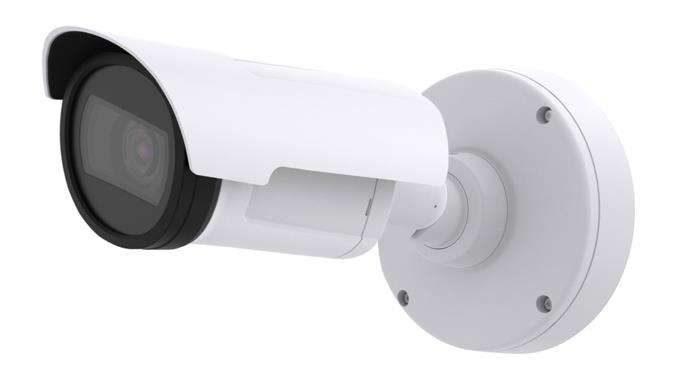

Optical Sensors

VIDEO

IMAGE SENSOR Progressive scan CMOS 1/3.2’’

LENS 2.8-9.8mm, F1.6

MINIMUM ILLUMINATION Color: 0.35 lux at F1.6 / B&W: 0.07 lux at F1.6

RESOLUTION 5MP / 2592x1944 HDTV 1080p

DAYLIGHT DETECTION RANGE Up to 150m

NIGHT DETECTION RANGE Up to 100m

FOV 92°

GENERAL

MATERIAL Polyester polycarbonate blend

COLOR White

PROTECTION IP66

SIZE Ø132x260mm

WEIGHT 862g

SYSTEM

OPERATING CONDITIONS -30°C to 50°C

OUTPUTS RJ45 plug

POWER PoE (max 12.8W)

File Title	Release Date	File Type	Size (mb)	Action
RF sensors based UAV Suppression System	07-24-2017	Documentation (pdf)	2.95 MB	download
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

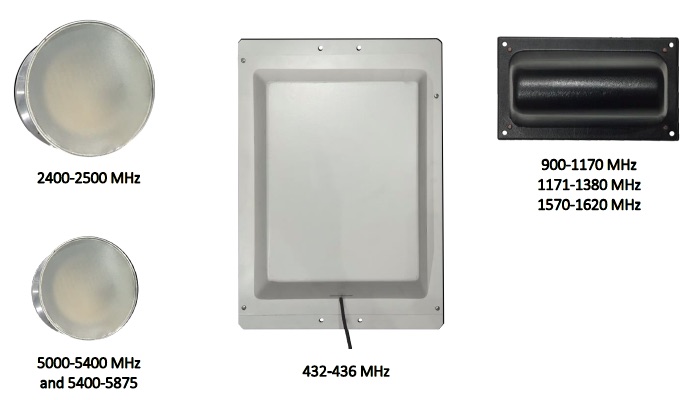

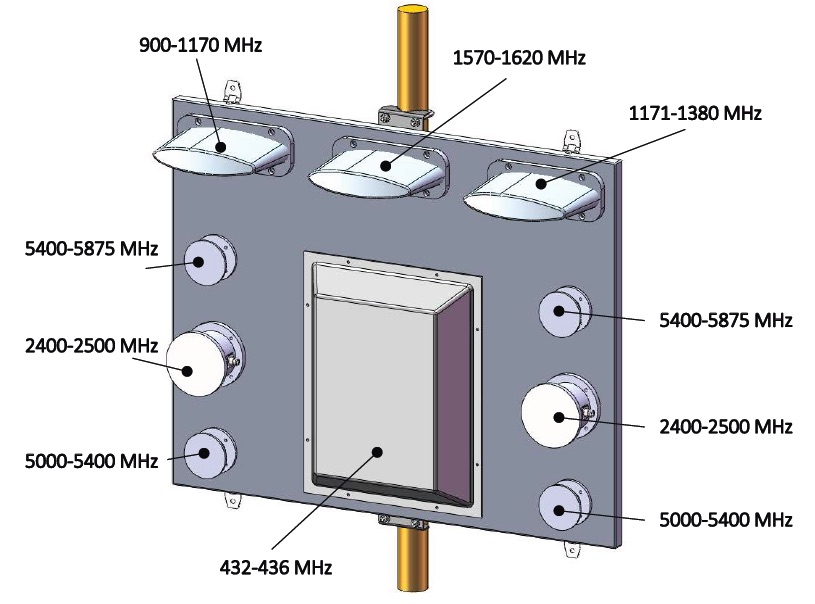

Jammer antenna panel combines all the antennas that work in conjunction with jamming system.

They are all high powered to provide a long range of action for the best level of protection.

JAMMING ANTENNAS

432-436 MHz 1 antenna

900-1170 MHZ 1 antenna

1171-1380 MHz 1 antenna

1570-1620 MHz 1 antenna

2400-2500 MHz 2 antennas (for linear and vertical polarization)

5000-5400 MHz 2 antennas (for linear and vertical polarization)

5400-5875 MHz 2 antennas (for linear and vertical polarization)

RANGE up to 5Km with directional antenna and up to 3Km with Omni directional

PANEL OPERATING CONDITIONS -10°C to +50°C

SIZE 1000 x 800mm

WEIGHT 20kg

CONNECTORS 10x type N jacks
