SPYNEL detects and tracks all intrusions, over 360 degrees, up to the horizon.

The SPYNEL 360 degree thermal imaging systems take wide-area surveillance to the next level. It gives early intrusion alert to any type of target, such as: crawling men, small wooden boats, RIBs in heavy sea clutter, UAVs, stealth aircrafts, etc.

SPYNEL is the ultimate solution for 24/7 situational awareness

Equipped with CYCLOPE advanced motion detection software, it provides unprecedented real-time security against conventional and asymmetrical threats. Completely passive, rugged, compact, this infrared search and track system can be set up and fully operational within minutes.

SPYNEL family comprises of 5 models to cover all surveillance applications:

	Spynel-X InfraRed Search and Track Cooled Mid-Wave InfraRed (MWIR) sensor Panoramic images with up to 120 Mpix Human detection range: up to 8 km
	Spynel-S Panoramic Detection System Cooled Mid-Wave InfraRed (MWIR) sensor Panoramic images with up to 30 Mpix Human detection range: up to 6 km
	Spynel-C Panoramic Thermal Camera Cooled Long-Wave InfraRed (LWIR) sensor Panoramic images with up to 12 Mpix Human detection range: up to 3 km
	Spynel-U Perimeter Intrusion Detection Uncooled Long-Wave InfraRed (LWIR) sensor Integrated 360-degree visible camera (option) Human detection range: up to 2.5 km
	Spynel-M Thermal Radar for Intrusion Detection Compact and cost-effective infrared radar Robust and transportable sensor for immediate 360-degree security Human detection range: up to 700 m

File Title	Release Date	File Type	Size (mb)	Action
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download
Drone detection system	02-27-2017	Link (uehaojtt4g)		go to link
Spynel High resolution sensor 720px	02-27-2017	Link (fm3fiw5gu8)		go to link

Spynel-X InfraRed Search and Track

Capturing, in real time, full panoramic images with an unequaled resolution of up to 120 Mpix., the SPYNEL-X is the IRST (Infrared Search&Track) with the best image quality and, by far, the longest detection range on the market.

SPYNEL-X is a unique passive wide-area surveillance system, bringing unprecedented real-time security against conventional and asymmetrical threats. It features the latest innovations in thermal sensing, integrated into a robust, field-proven mechanical design, and exhibits the highest performance in its category: a single SPYNEL-X sensor can perform 24/7 early human intrusion alerts over a 16km-diameter area. SPYNEL-X replaces up to 90 HD MWIR cameras  in one single sensor head

Long-range automatic detection, recognition, identification

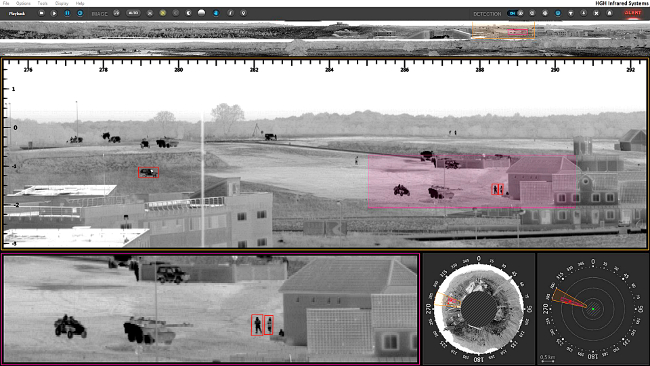

Equipped with Cyclope, advanced threat detection software, SPYNEL-X can perform early target discrimination over extremely large areas, in total darkness, fog or smoke. An unlimited number of tracks are simultaneously identified on highly resolved images, including hardly detectable threats, such as crawling men, RHIBs, low altitude air  targets, UAVs and stealth aircrafts. SPYNEL-X is the ultimate solution for wide area surveillance, continuous perimeter security, and critical infrastructure protection for FOBs, air and navy bases, ship auto-protection, oil & gas infrastructures, airports, ports, borders and coasts.



File Title	Release Date	File Type	Size (mb)	Action
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download
Drone detection system	02-27-2017	Link (uehaojtt4g)		go to link
Spynel High resolution sensor 720px	02-27-2017	Link (fm3fiw5gu8)		go to link

Benefits

• Top-of-the-line system in the Spynel series
• Cost effective and reliable surveillance system
• Full 360-degree panoramic coverage with a single sensor
• Long range surveillance up to the horizon
• Day and night panoramic scrutiny even in adverse weather conditions
• Automatic, simultaneous tracking of all threats with superior image quality
• Compact, robust, lightweight equipment, for a fast deployment
• Fully passive system, totally undetectable

Applications

• Persistent wide area surveillance
• 24/7 perimeter security
• 360° asymmetrical threats detection
• Airport / airfield surveillance
• Critical infrastructure protection
• Surveillance of forward operating bases
• UAV, low air target tracking
• Border and coastal passive surveillance
• Self-protection of ships
• Fight against piracy and smuggling
