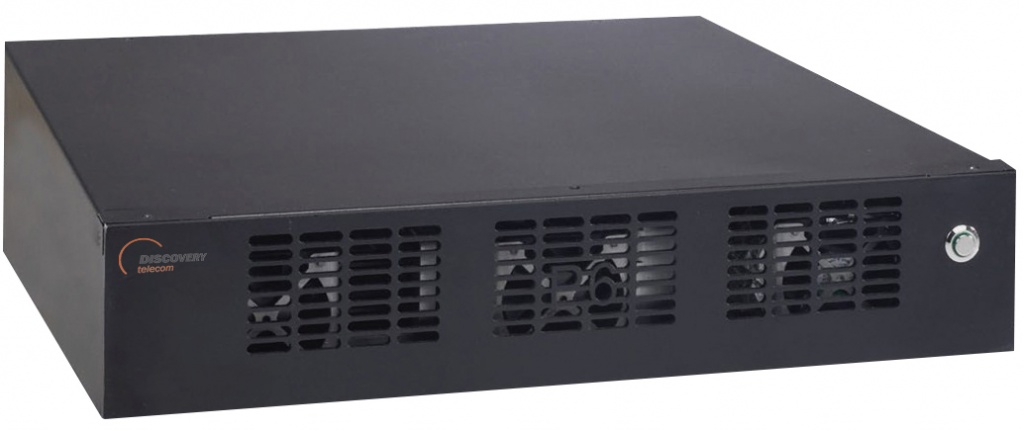

Invader. Active GSM Interceptor

Main characteristics

SKU	2116
Vendor	Intercept
Category	Cellular interception
Standart	2G/900/1800/850/1900 - 5G - More … 2G/900/1800/850/1900 - 5G - 4G - 3G
System output	Voice, SMS and call related data
Power source	110/240V AC or 12V DC, 100W
Active range (m)	500
OS	Windows 7, 10
Decryption	A5.2, A5.1, (A5,3 via downgrade); up to 20 keys per sec
Battery	via AC-DC converter
Display	17” TFT, 1024x768
SMS(MMS)	in all languages
Antenna	Single directional or omnidirectional
Q'ty of channels	8 can be expanded up to 12
Internet	Yes
Connectors	USB
Datacom	GPRS / EDGE analyzer
Protocols	IMEI, IMSI, TMSI
Management	API, IP
Delivery set	Interceptor, Laptop, antenna, AC-DC converter, S\W
Dimensions, HWD	CASE, 19" RACK, 2U, 413 mm
Weight	10 kg
Shipment	According to EUC

Review

Main features

Technical Specifications

Demo & Training

Download

Invader Active Interrogation and Interception system

The Invader-AS-2B acts as a standard GSM Base Station which attracts GSM mobile devices in its near vicinity, and controls their modes

of operation, including identity retrieval, calls and SMS.

The system allows its operator to either release the captured device back to the real network, or leave it under the system control, monitoring, intercepting and storing all its traffic.

The Invader-AS-2B includes two BTS modules, where each BTS can monitor a different GSM band, allowing extended coverage. Larger configurations are supported including 4 or 6 base stations facilitating simultaneous monitoring of 2 or 3 cellular networks.

When connected to decipher unit (locally or remotely), the system can intercept ciphered calls and SMS (A5/1 and A5/2)

Common Uses of Invader-AS-2B

• On the Air Interception

• IMSI/IMEI catching (3G,4G,5G Separately)

• Selective jamming of communication

• Presence Detection

• Data Analysis

• Direction Finding Support

• Phone manipulation

2 BTS GSM Interception system

File Title	Release Date	File Type	Size (mb)	Action
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

• Automatic network scan and system setup

• Cloning of a real cellular network

• Simulating GSM 850,1900,900,1800 base stations

• Presence detection of specific mobile devices/targets

• Real-time calls and SMS interception of A5/0/1/2 cellular networks

• Supports up to 5-12 full-duplex concurrent calls

• Supports A5/0 reduction

• built-in A5/2 decipher

• built or remote- A5/1 decipher

• Voice and data recording on hard disk

• Outgoing and incoming call number determination

• DTMF tones interception

• Ability to interrupt ongoing calls

• Ability to selectively prevent calls

• Manipulate communication (calls & SMSs)

• Cause any targeted GSM phone transmit an RF-beacon that can be DF located

• Capturing mobile phones within range and extracting their cellular identifiers (IMSI, IMEI, TMSI, MSISDN)

File Title	Release Date	File Type	Size (mb)	Action
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

Frequency stability of each receiver	850/ 900/1800/1900 MHz
Voice codec types	+0.04 ppm
Frequency stability	LPT-RPE, FR, EFR, HR, AMR
Sensitivity of Receiver Unit	±50 PPB
Sensitivity of Receiver Unit	better than -102 dBm (signal/noise =19) dB
AGC – dynamic range	25 dB
Synchronization	Adaptive
Demodulator	GMSK
Error correction	Viterbi decoder
Impedance of antenna input/output	50 Ohm
RF output Power	2W (optional 20W external Power Amplifier)
Power supply:	110/240V AC or 12V DC
Power consumption	60W (additional 100W per PA per BTS)
Operating temperature range	+ 5° C to +45° C
Rated temperature range	+ 5° C to +45° C
Storage temperature range	-15° C to +60° C
Humidity	+42° C at 92%
Form Factor	CASE, 19" RACK, 2U, 413MM

File Title	Release Date	File Type	Size (mb)	Action
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

Demo or training are carried out in our premises or in the client's country, subject to an official invitation from government agencies.

We provide online demos only to existing clients with whom we have successful experience of cooperation.

We do not provide free training. If you are not familiar with the subject, links to training courses are here.

To apply for a demo or training you should provide a completed end user certificate

File Title	Release Date	File Type	Size (mb)	Action
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

File Title	Release Date	File Type	Size (mb)	Action
End User Certificate (EUC) to apply for purchase	03-03-2021	Documentation (pdf)	0.09 MB	download

To access this product file, get partner STE status

Additional Product Information

Can simultaneously work on multiple carriers

Very simple interface. Full automation of the process. Minimum settings.
